Mini Loaders

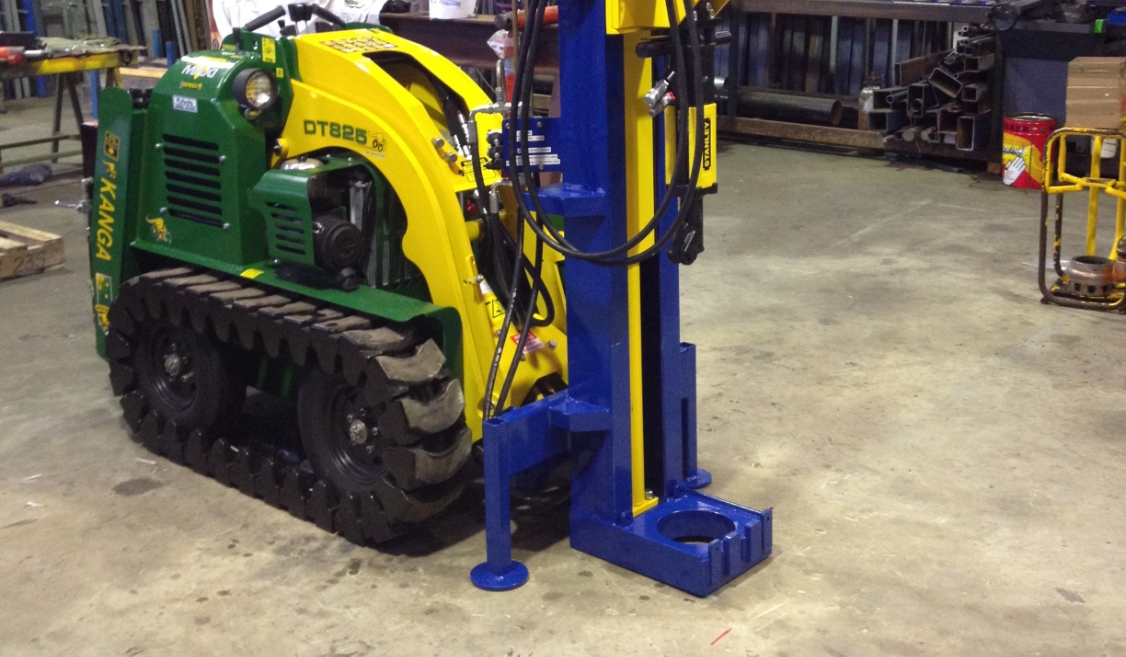

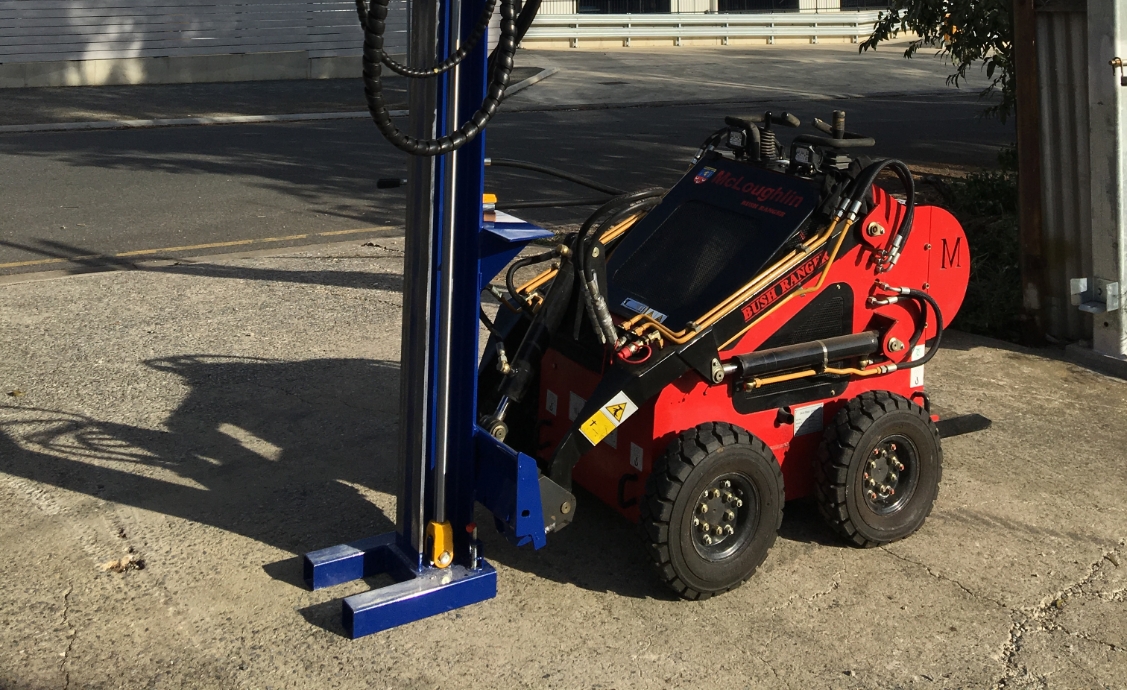

  • KDR 800 And KDR 800 HD (Heavy Duty)

 These drill rigs are designed to be mounted to a Kanga machine (or equivalent) designed principally for the driving of push tube soil sampling drilling methods, eliminating the need for manually operated, jackhammer type soil sampling operations.

Specifications

  • Max Retract Force Is 8000Kg @2500 PSI (9400Kg@3000 PSI)
  • Max Thrust Is Limited To 500Kg @ 2500 PSI
  • Overall Collapsed Clearance Height Is 2000Mm
  • Drill Rod Stroke Is 1650Mm
  • Push Tube Driver. Impact Force Is Provided By A Tried And Proven Stanley BR 40 Hydraulic Actuated Hammer
  • Drilling Rig Is Designed As A Direct Attachment To Mini Loaders With Universal Mount Plate.
  • Easy To Use Hydraulic Lever Controls
  • Frame Sandblasted 2-Pack Primed And 2-Pack Painted

Options

  • Removable Stabiliser Feet And Wheels To Allow Portability Separate From Carrier.
  • Hydraulic Levelling Jacks Fitted To Two Or Four Corners To Facilitate Levelling Of Machine On Sloping Sites
  • Hydraulic System Pressure Gauges On Both Main System Pressure And Cylinder Retract/Pulldown Pressure
  • Hydraulic Fine Feed On Main Pulldown System For Efficient Auger Or Hammer Drilling
  • Drill Table And Slips To Suit Other Drill Rods/ Auger Sizes
  • Hydraulic Actuated Breakout For Rod Make/Break
  • DTH Hammer And Air Swivel
  • Auger Drive Attachment For CFA Drilling Or For Conventional Soil Drilling Operations Up To 10”(250Mm) Mounted On Head Slide Plate To Enable Either Hammer Drilling Of Push Tubes Or Augering Operations.
  • Swing Out Head System For Auger Drive To Facilitate Easy Pulling Of Soil Tubes Without Having To Reposition The Machine.
